POINT
□Heat-resistant grease applied for swivel head.
□Swivel and fixed brackets have common bolt hole spacing so that both are replaceable.
□Recommended continuous operation should be within 1hour under the max. temperature. Cooling down in a room temperature for 1hour approx. might be recommended after each operation.
<PHN: Phenolic resin wheel>
□Hardness:(R)100‐110
□Max. operating temperature:+260℃
(NB Operation temprature of φ200 is -30℃~+230℃)
□ Free of asbestos
<POSI: Heat-resistant silicone rubber>
□Hardness:(HS)71‐79
□Max. operating temperature:+250℃
□non-marking
<VEHI: Heat-resistant solid rubber wheel>
□Hardness:(HS)75-85
□Max. operating temperature:+200℃
□Needle bearing results in quiet and smooth rolling.
<POHI耐熱ナイロン車輪>硬度:(HS)85
□最高使用温度:+250℃
□耐衝撃性に優れた耐熱ナイロン製

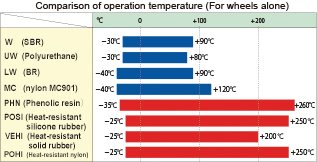

Comparison of operation temperature
(For wheels alone)
USE EXAMPLE

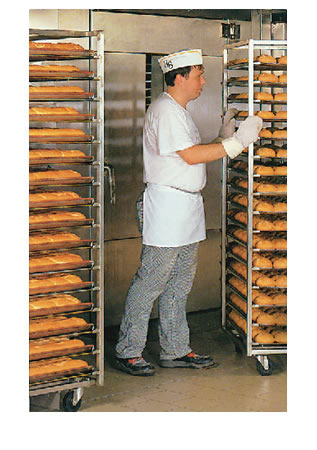

□For baking oven racks in baking industry.
□For carrier used at facility for high temperature sterilization.
□For inspection and testing machines.
WHEEL
NB…Needle bearing
