130mm
～
200mm
80kg
～
250kg
-40℃
～
+90℃
RoHS Compliant Products
NB For ditails, please refer to the specification above.
POINT
□Swivel⇔Fixed: easily switchable by putting one-touch lock
lever on/off.
→Directional lock is activated automatically when the
castor is in motion.
→Locating and adjusting the locking position is not
required.
□SISIKU's unique point - Box style wheel.
□Smooth swiveling thanks to double bearing in the swivel head with ball protection.

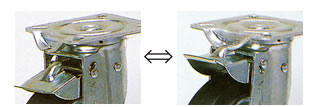

When lock is off. (Swivel) When lock is on. (Fixed)
Operating one-touch lock lever use example

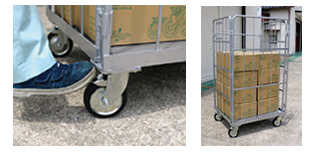

USE EXAMPLE
□For various carriers.
□For working desk.
□For roll box pallet.
We'll accept your custom-order. Please feel free to contact us.
WHEEL
CB…Commercial ball bearing
JBB…Radial ball bearing
OL…Oileless bushing
SBR
High rebound rubber
・ Runs more lightly compared with W !
・Impact resistance: 1.8 times higher than W.
・ Starting performance: 2.5 times better than W.
NB ø100, 150 and 200 only
BR (White)
・Cold resistance (-40ºC to +90ºC)
・Floor saving and non-marking.
BR
・ Cold resistance (-40ºC to +90ºC)
・Floor saving and non-marking.
UR (Polyuretane)
BR (Antibacterial Polyurethane/White）
・Antibacterial, oil resistance and high elasticity.
・Floor saving and non-marking.
Nylon 6
<made in koria>
NB With stopper type : not available.
NB ø100, 130 and 150 only.
NR /Semi-pneumatic
NB ø150 and 200 only.
