50mm
～
75mm
300kg
～
500kg
-40℃
～
+120℃
RoHS Compliant Products
NB For ditails, please refer to the specification above.
POINT
□Bearing and bracket (including balls in swivel head) are
made of stainless steel. (SUS304)
□Smooth swiveling thanks to double bearing in the swivel
head with dust shield for balls.
□Smooth running after long-term fixation.
□Easy moving and turning.

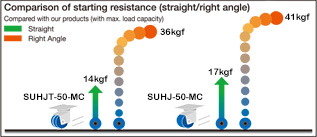

Starting resistance is down to a right angle compared to single wheel castor!
＜twin wheels＞ <Single wheeled＞
＜twin wheels＞ <Single wheeled＞
USE EXAMPLE
□For fixed precision machines to be occasionally relocated in a workplace, or moved as production line is rearranged.
□For heavy duty slow-moving carriers.
We'll accept your custom-order. Please feel free to contact us.
WHEEL
SJBB…Stainless steel radial ball bearing
Monomer cast nylon/Blue
Monomer cast nylon/Black
Conductive monomer cast nylon/Black
Volume resistance:102～104Ω・cm
（*For reference only, not guaranteed.)
