80mm
～
100mm
1000kg
-40℃
～
+120℃
RoHS Compliant Products
NB For ditails, please refer to the specification above.
POINT
□Maximum load capacity of both φ80 and 100 is 1000kg.
□Thanks to double bearing (thrust and radial ball bearing) in the swivel head as standard equipment, smooth swiveling function even with high load.
□Rotates smoothly after a long-term fixation under a heavy load.

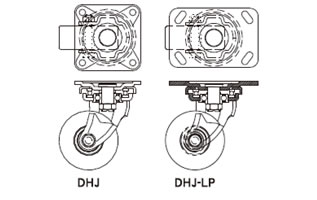

DHJ-LP -Swivel (long bolt hole type)-
DHJ-LP type has common bolt hole spacing with「LS-GSPO 125K」 (max. load capacity: 1750kg).
DHJ-LP-100U-MCMO
Swivel with stopper
DHJB-100U-MC
USE EXAMPLE
□For fixed precision machines to be occasionally relocated in a workplace, or moved as production line is rearranged.
□For heavy duty slow-moving casters.
We'll accept your custom-order. Please feel free to contact us.
WHEEL
JBB…Radial ball bearing
Monomer-cast nylon/Blue
Monomer-cast nylon/Black
