100mm

200mm

10kg

220kg

80kg

250kg

-40℃

+90℃
RoHS Compliant Products
NB For ditails, please refer to the specification above.

POINT

□ SISIKU's unique point - Box style wheel.
□Center coil spring type absorbs shock and vibration from every direction, and reduces noise in operation.
□Thanks to shock absorbing function, impact loading to swivel head and wheel bearing can be lowered, leading to an increased service life of the product.
□Wheel with grease-packed precision ball bearings.
- Smooth and silent rolling without subsequent lubrication.
□For nonstandard springs, please consult us.

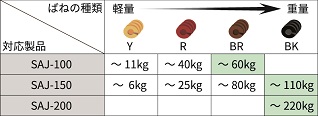

各種コイルスプリング *Green color: standard 各種コイルスプリング
SAJB-200SST
Swivel with stopper
SAJB-200W

USE EXAMPLE

□For precision equipment and carrying parts.
□For automatic guided carts and towing carts.

We'll accept your custom-order. Please feel free to contact us.。

WHEELS

CB…Commercial ball bearing

JBB…Radial ball bearing

Wゴム車輪
SBR
SSTスーパーソリッド車輪
High rebound rubber
Runs more lightly compared to W!
Impact resistance: 1.8 times higher than W. Starting performance: 2.5 times better than W.
NB ø100, 150 and 200 only.

WWホワイトジエンゴム車輪
BR/White

LWジエンゴム車輪
BR
Cold resistance (-40ºC to +90ºC) Floor saving, non-marking LW (BR)
UWウレタン車輪
UR
EUW制電性ウレタン車輪
Antistatic UR
Volume resistance 106 ~108Ω・cm※
(※For reference only, not guaranteed.)
WUW抗菌ホワイトウレタン車輪
Antibacterial Polyurethane/White
Antibacterial effect, oil resistance and high elasticity. Floor saving and non-marking.

NR/BR Semi-pneumatic
NB Only ø150 and 200 available
