50mm

75mm

300kg

500kg

-40℃

+120℃
RoHS Compliant Products
NB For ditails, please refer to the specification above.

POINT

□Bearing and bracket (including balls in swivel head) are made of stainless steel. (SUS304)
□ Thanks to double bearing (thrust and radial ball bearing) in the swivel head as standard equipment, smooth swiveling function even with high load.
□MCD wheel: Electrically conductive nylon against static problem.
□Rotates smoothly after a long-term fixation under
a heavy load.

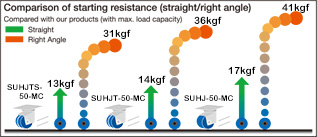

Starting resistance for swivel motion reduced!


  <Twin wheeled    <Twin wheeled     <Single wheeled
  smooth castor>      castor>           castor>

USE EXAMPLE

□For fixed precision machines to be occasionally relocated in a workplace, or moved as production line is rearranged.
□For heavy duty slow-moving carriers.

We'll accept your custom-order. Please feel free to contact us.

WHEEL

SJBB…Stainless steel radial ball bearing

MCモノマーキャスティングナイロン(ブルー)
Monomer cast nylon/Blue
MCMOモノマーキャスティングナイロン(ブラック)
Monomer cast nylon/Black

MCD導電性MCナイロン(ブラック)
Conductive monomer cast nylon/Black

Volume resistance:102~104Ω・cm*
(*For reference only, not guaranteed.)
